Bargraph Meter
Bargraph Meter
MODEL 1911, 1912
- ■101 dots type bar graph meter is designated exclusively for bargraph indicator
- ■It is designed on base of DIN standard having bargraph size of 144×36 mm
Model Designation
| 191 | □ | - | □ | - | □ |
| A | B | C |
| Code | Input |
|---|---|
| 1 | Single |
| 2 | Dual |
| Code | Input |
|---|---|
| 1 | DC 0-1 mA |
| 2 | DC 4-20 mA |
| 3 | DC 0-1 V |
| 4 | DC 1-5 V |
| 5 | DC 0-5 V |
| 0 | Other than those above *1 |
- *1:
- Input Voltage less than DC 10 V
Input Current Less than DC 50 mA
| Code | Power Voltage |
|---|---|
| 2 | AC 90-132 V |
| 4 | AC 180-264 V 24 V |
| 7 | DC 5 V *2 |
| 9 | DC 24 V |
- *2:
- Terminals between power supply and input are non-insulated
Specifications
| Models | 1911(Single) | 1912(Dual) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Display | LED (Color: Red) | |||||||||
| Bar dots | 101 | |||||||||
| Scale length | 100 mm, (1.5 mm width) | |||||||||
| Accuracy | ±(1% of FS + 1 digit) | |||||||||
| Response time | 0.5s | |||||||||
| Scale plate | Black Aluminum(White scale & white characters) | |||||||||
| Insulation resistance | Between all terminals and outer case DC 500 V, More than 50 MΩ | |||||||||
| Withstanding voltage |
|
|||||||||
| Power supply | AC 90-132 V 50/60 Hz AC 180-264 V 50/60 Hz DC 24 V ± 15% DC 5 V ± 5% |
|||||||||
| Power consumption | 3.5 VA(AC 90-132 V) 5 VA(AC 180-264 V) 2 W(DC 24 V) 1 W(DC 5 V) |
5 VA(AC 90-132 V) 5.5 VA(AC 180-264 V) 4 W(DC 24 V) 2 W(DC 5 V) |
||||||||
| Operating temperature | 0 to 50°C | |||||||||
| Storage temperature | -20 to 70°C | |||||||||
| Weight | Applox. 360 g | Applox. 390 g | ||||||||
Input Specifications
| Code | Input Signal | Input Impedance |
|---|---|---|
| 1 | DC 0-1 mA | 200 Ω |
| 2 | DC 4-20 mA | 10 Ω |
| 3 | DC 0-1 V | More than 100 kΩ |
| 4 | DC 1-5 V | More than 250 kΩ |
| 5 | DC 0-5 V |

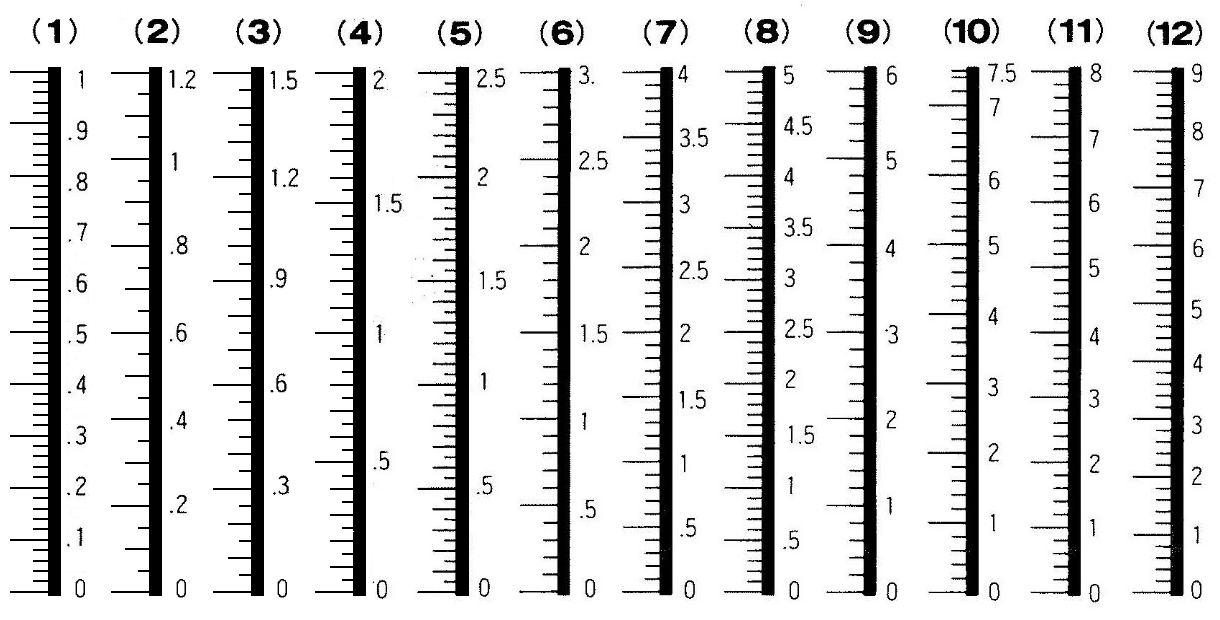

| No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. value | 1 | 1.2 | 1.5 | 2 | 2.5 | 3 | 4 | 5 | 6 | 7.5 | 8 | 9 |
| Division No. | 50 | 24 | 30 | 40 | 50 | 30 | 40 | 50 | 30 | 37.5 | 40 | 45 |
